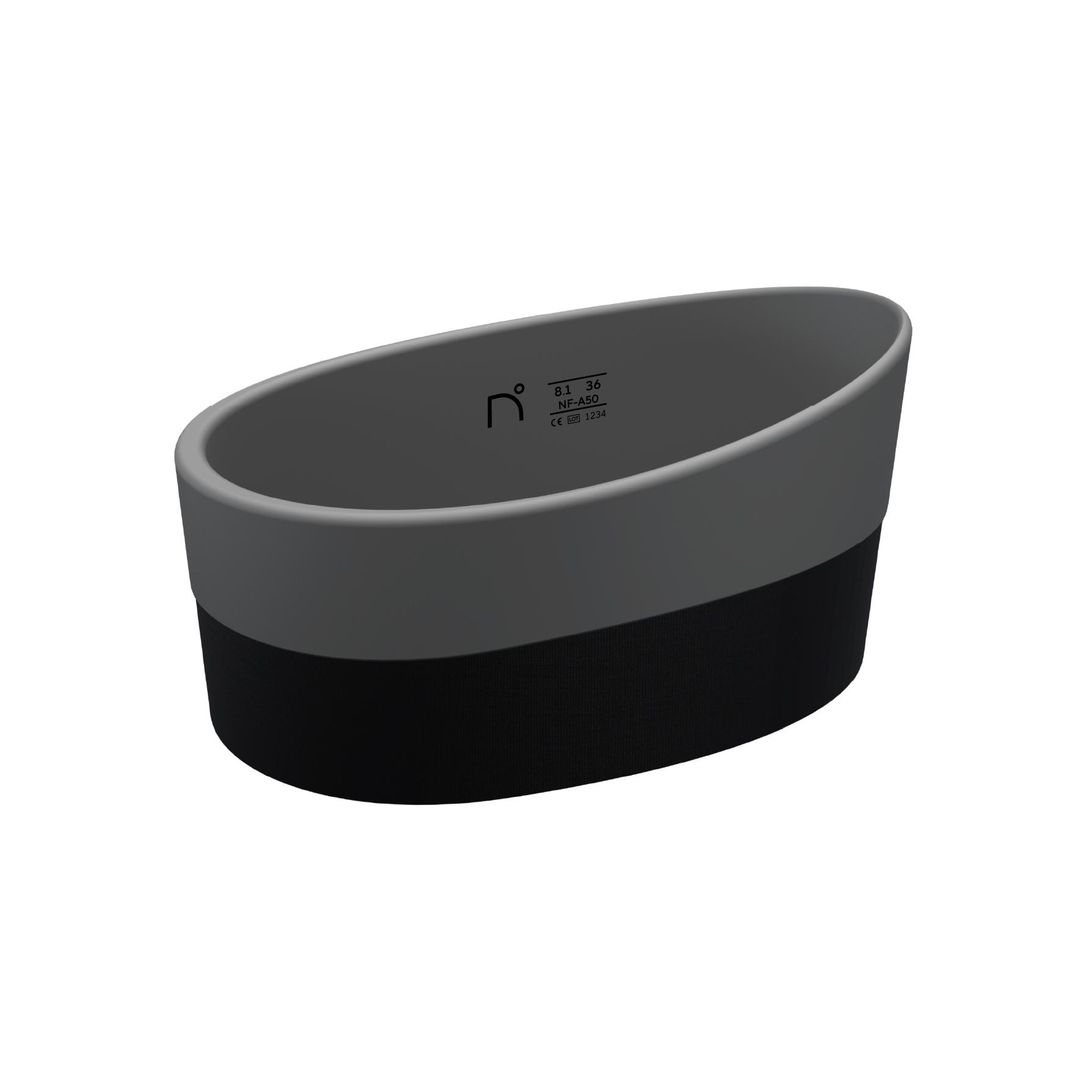

NORD° TF BRIM 8.1
NFA-50
Intended for a variety of TF socket designs and production techniques.
Flexibility for comfort
Firmness for stability
NORD° TF BRIM 8.1 NFA-50
| Nord° Formula | NFA-50 HQ TPE |
| Height | ≈ 7.5 – 12.5 cm |
| Color | Dark grey and black |
| Weight | Size 50 ≈ 285 gram |
| Products | Produced in Spain |
| Nord° Formula | Produced in Sweden | CO2 emission | LCA in progress |
NORD° TF BRIM 8.1 NFA-50
| Size cm | Part no. |
|---|---|
| 42 | 814242 |
| 44 | 814244 |
| 46 | 814246 |
| 48 | 814248 |
| 50 | 814250 |
| 52 | 814252 |
| 54 | 814254 |
| 56 | 814256 |
| 58 | 814258 |
| 60 | 814260 |
Sizing
Highly recommended to have an assortment of sizes on stock.
1. If you have access to an assortment of Brim sizes.

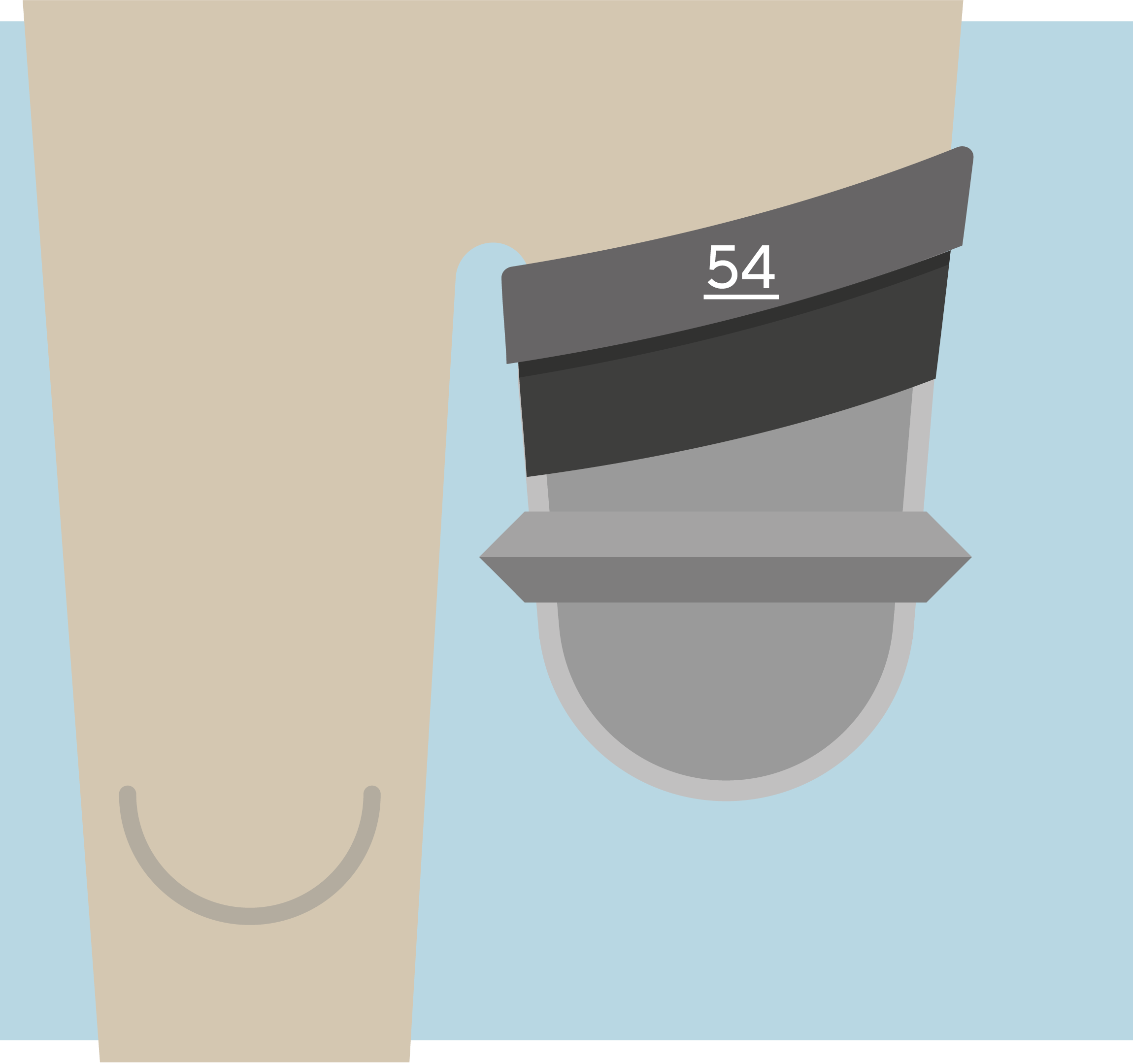

A. Apply a Nord° Brim on the limb over the liner to ensure a snug fit and correct size.
Verification
Measurements should align. The rectified mold circumference should match the selected Brim circumference and not exceed it by more than 2–3 cm.
Measurement differences exceeding 2–3 cm may result in overstretching of the Brim during shaping, with risk of damage or rupture.

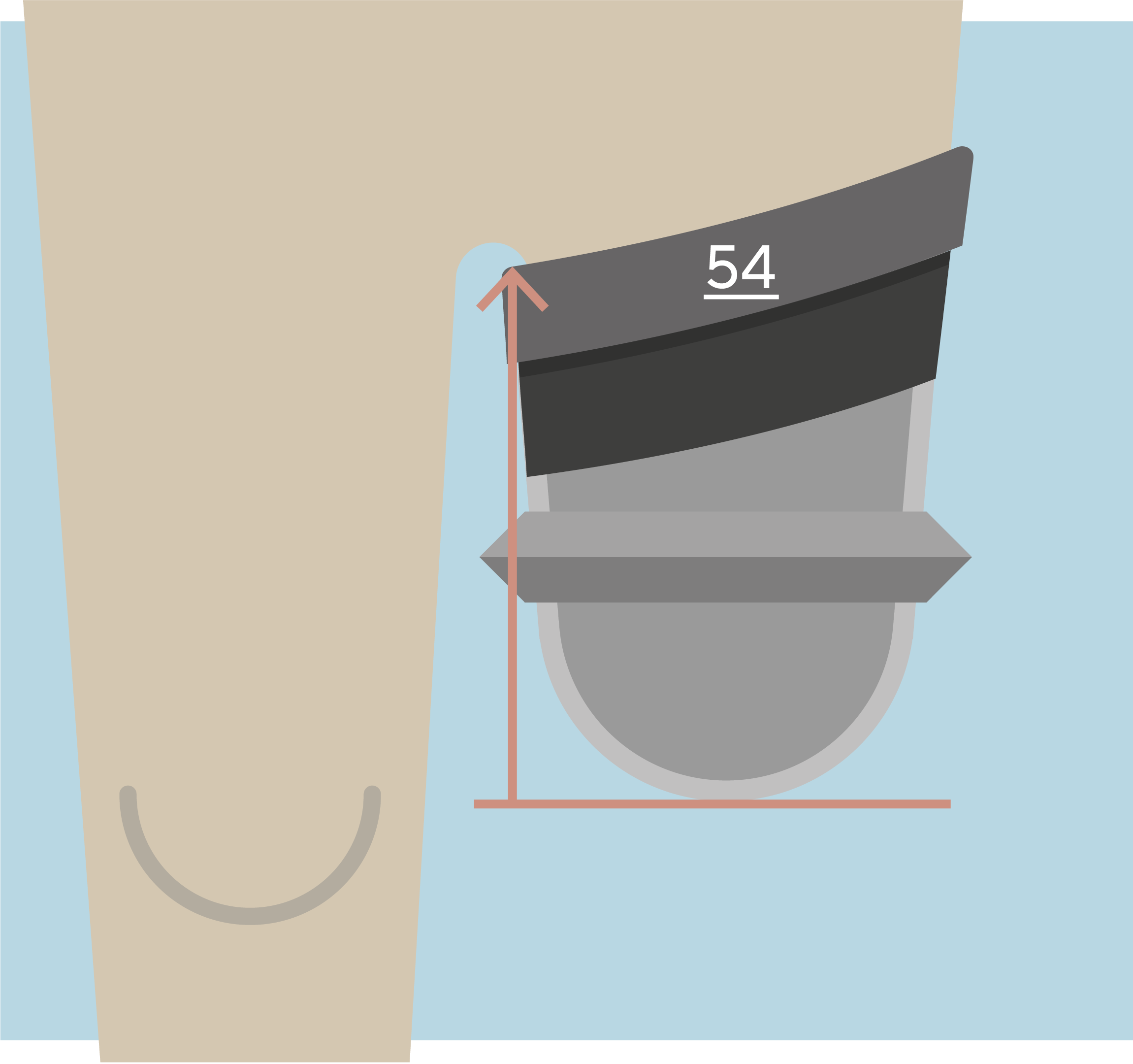

B. Ensure same measurement level on the plaster mold and the limb. Measure the limb from the distal end to the proximal-medial edge of the Nord° Brim. Transfer this distance to the mold and measure the circumference at the same level.
2. If you don´t have Brims at hand.
B. Ensure same measurement level on the plaster mold and the limb. Measure the limb from the distal end to the intended proximal-medial edge Brim position.Transfer this distance to the mold and measure the circumference at the same level.
C. Ensure the rectified positive plaster mold circumference matches the selected Brim circumference (size).

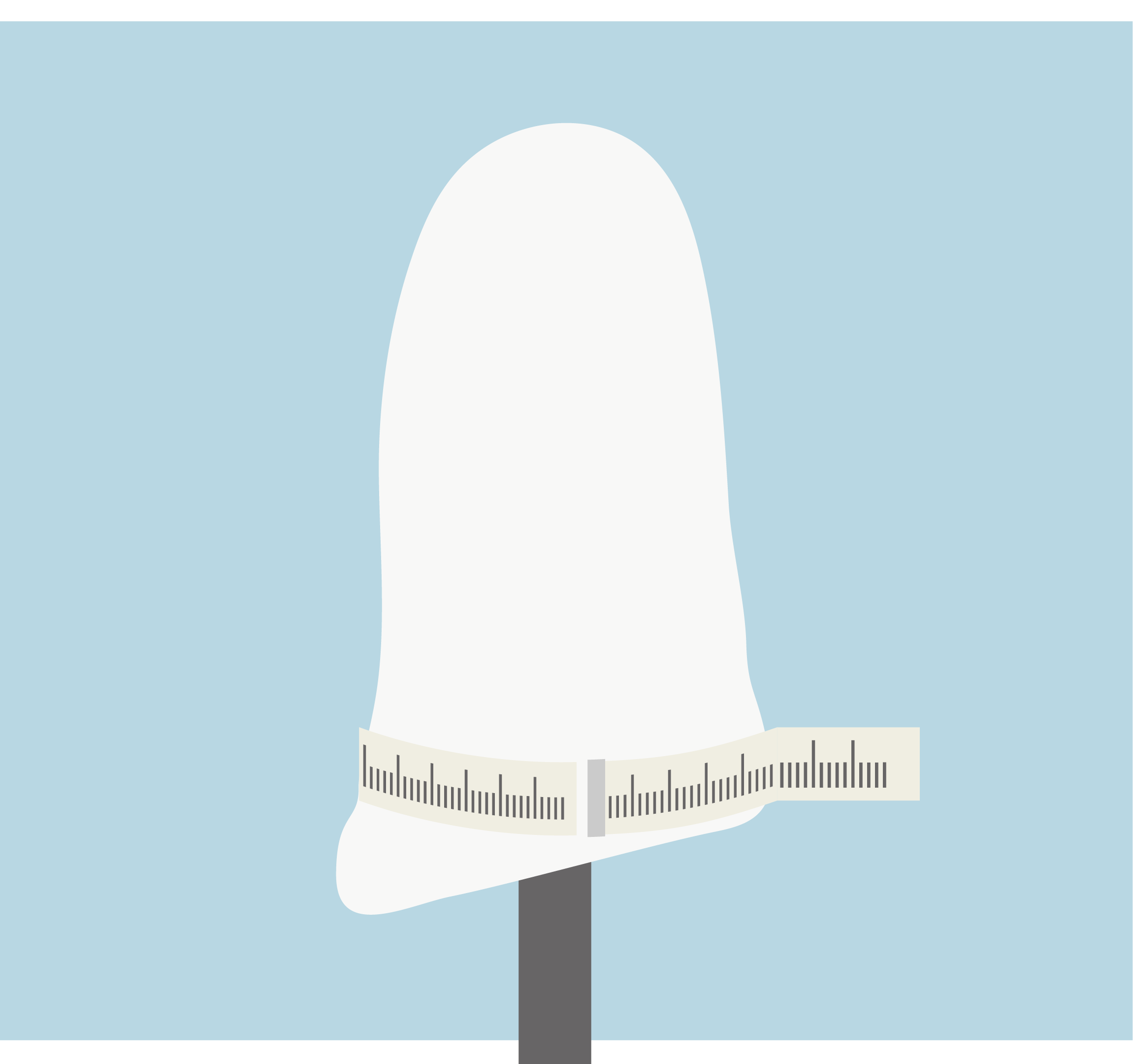

C. Measure the rectified plaster mold circumference at the same level.
Verification
Measurements should align. The rectified mold circumference should match the selected Brim circumference and not exceed it by more than 2–3 cm.
Measurement differences exceeding 2–3 cm may result in overstretching of the Brim during shaping, with risk of damage or rupture.

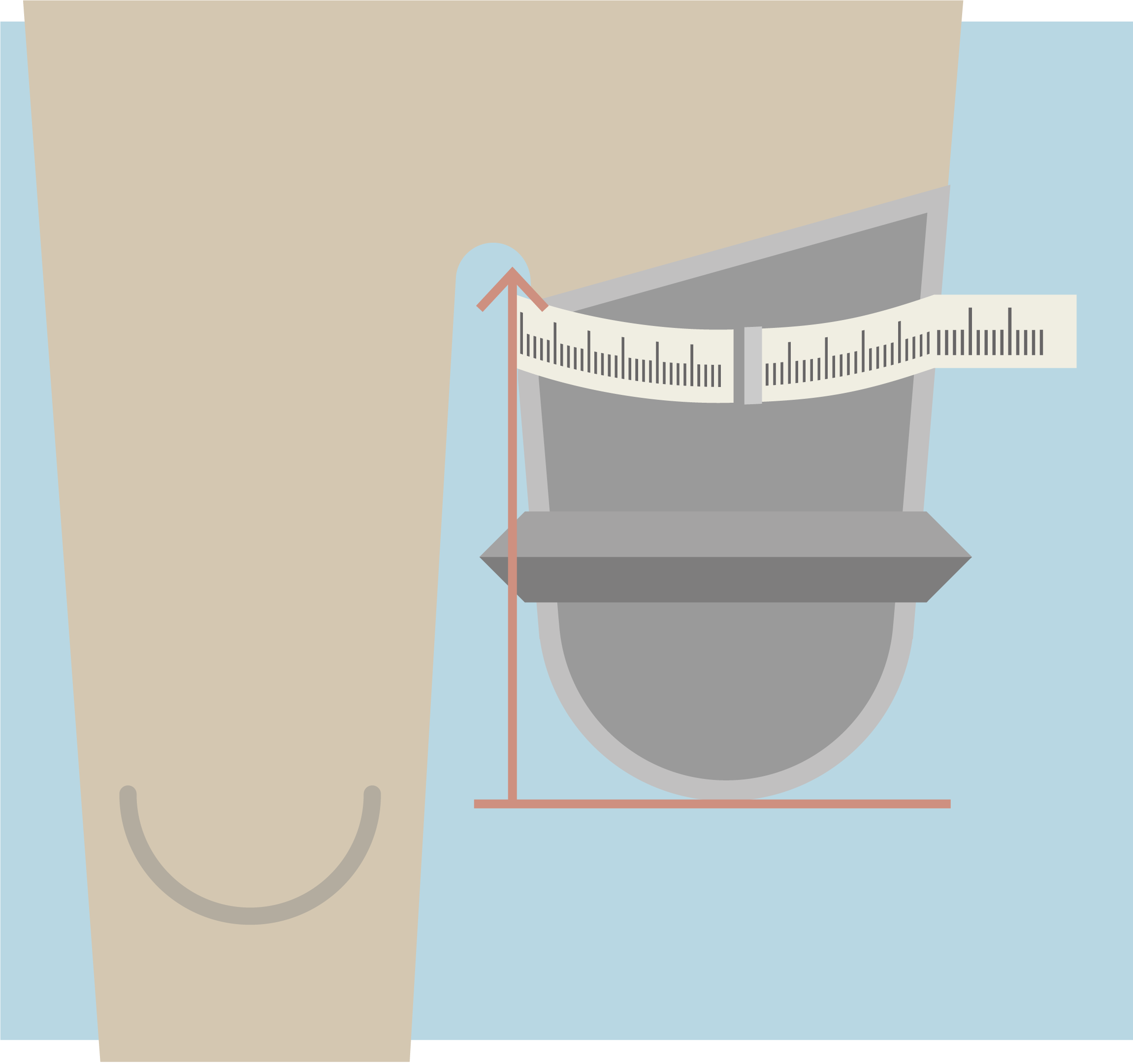

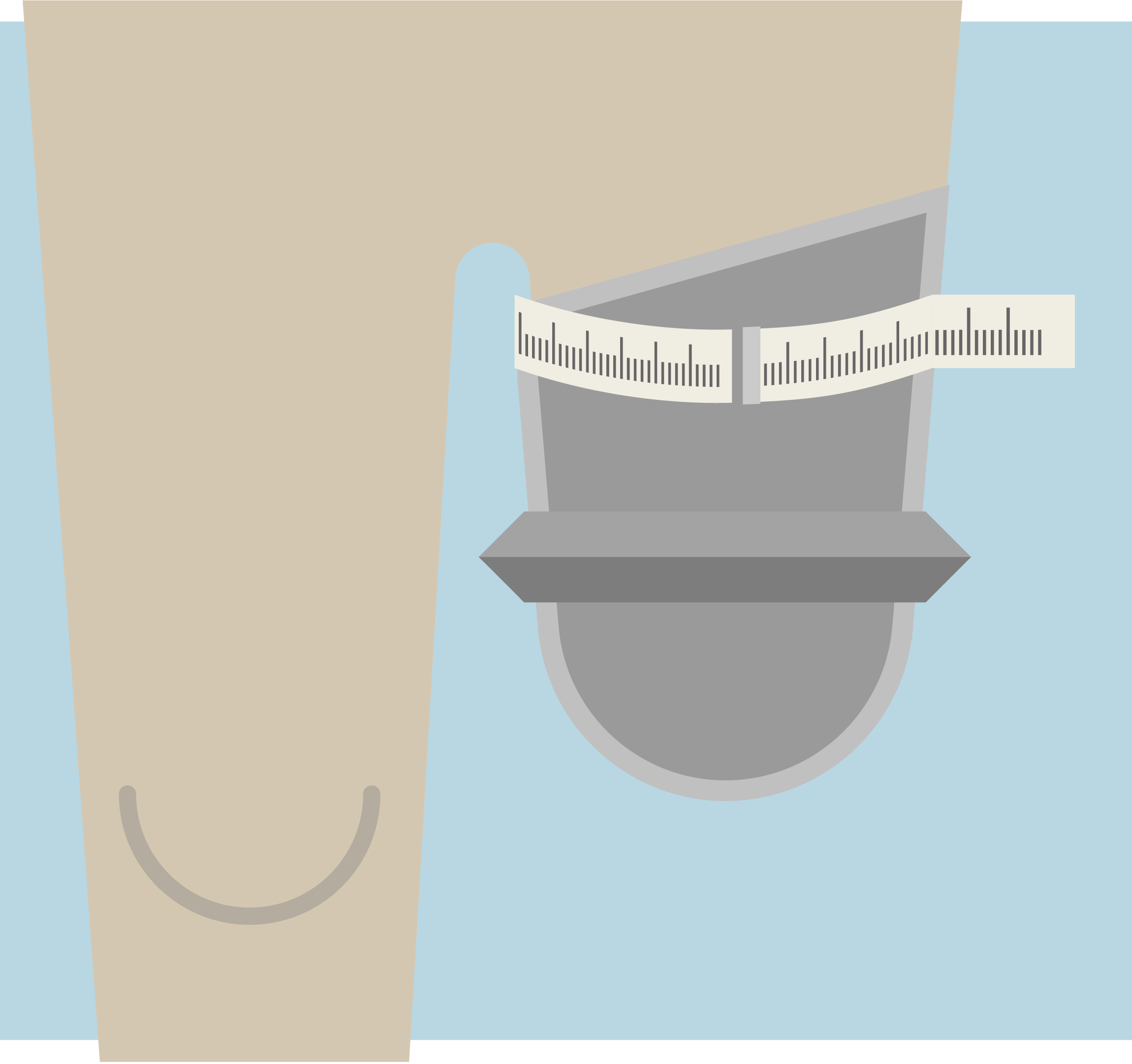

A. Measurement with patient standing up with a liner on. Measure at the intended proximal-medial Brim level (horizontal).

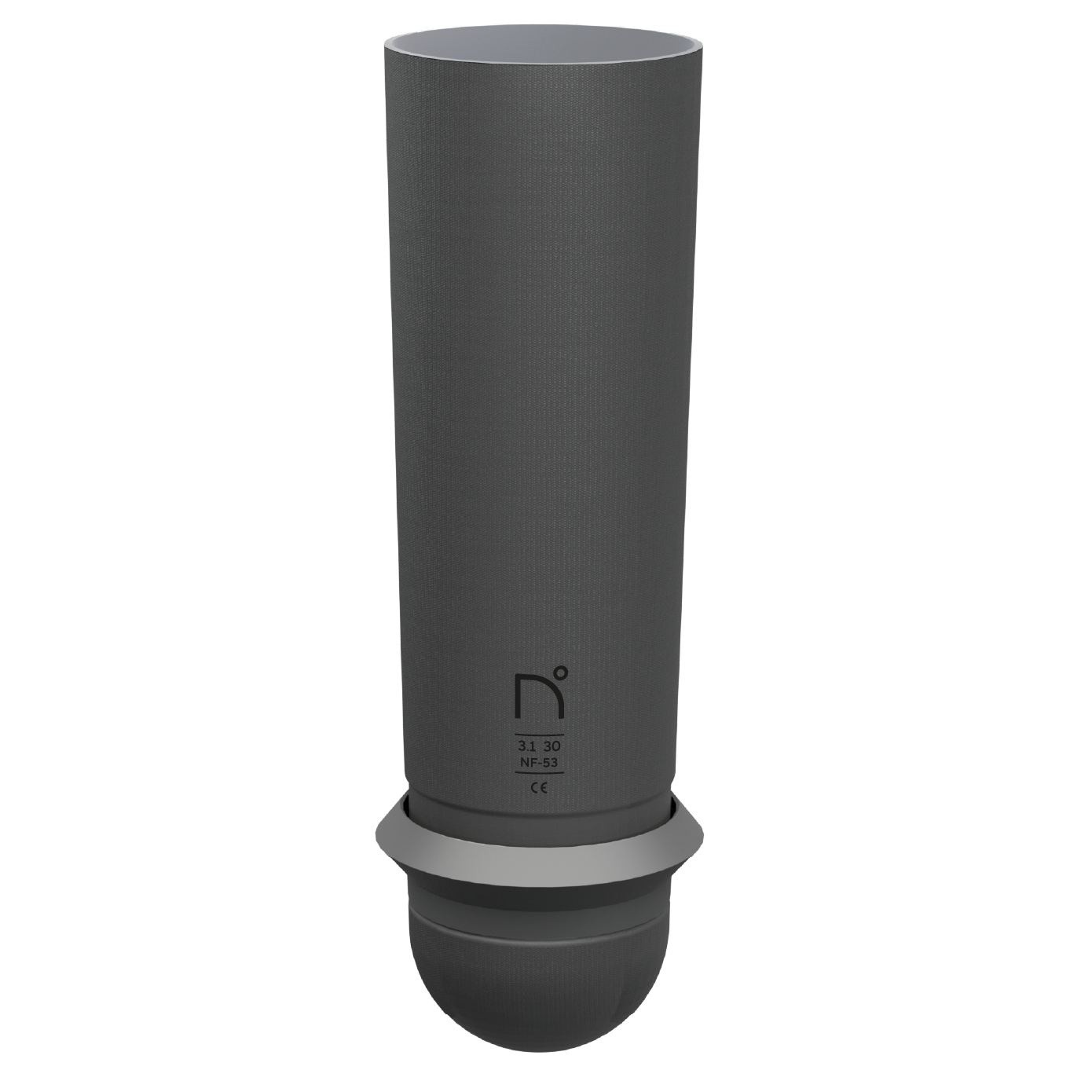

NORD° LINER 3.1
NF-53
TF CYLINDRICAL
TF/AK vacuum liner with sealing membrane designed to Conform and Stabilize in a balanced way.
Nord° custom TPE formula conforming without deforming. V-shaped sealing membrane for effective vacuum and rotation control. Easy use of stump socks.
NORD° LINER 3.1 NF-53 CYLINDRICAL
| Nord° Formula | NF-53 Custom blend HQ TPE |
| Intended for | All types of activities |
| Length | ≈ 44 cm |
| Color | Dark Grey |
| Weight | Size 32 Cylindrical ≈ 625 gram |
| Products | Produced in Spain |
| Nord° Formula | Produced in Sweden |
| Packaging | 85% recycled paper. Produced in Sweden |
| CO2 emission | LCA in progress |
Size chart
| Size cm | Part no. |
|---|---|
| 25 | 312225 |
| 26.5 | 312226 |
| 28 | 312228 |
| 30 | 312230 |
| 32 | 312232 |
| 34 | 312234 |
| 36 | 312236 |
| 38 | 312238 |
| 40 | 312240 |
| 45 | 312245 |
| 50 | 312250 |
| 55 | 312255 |
Sizing

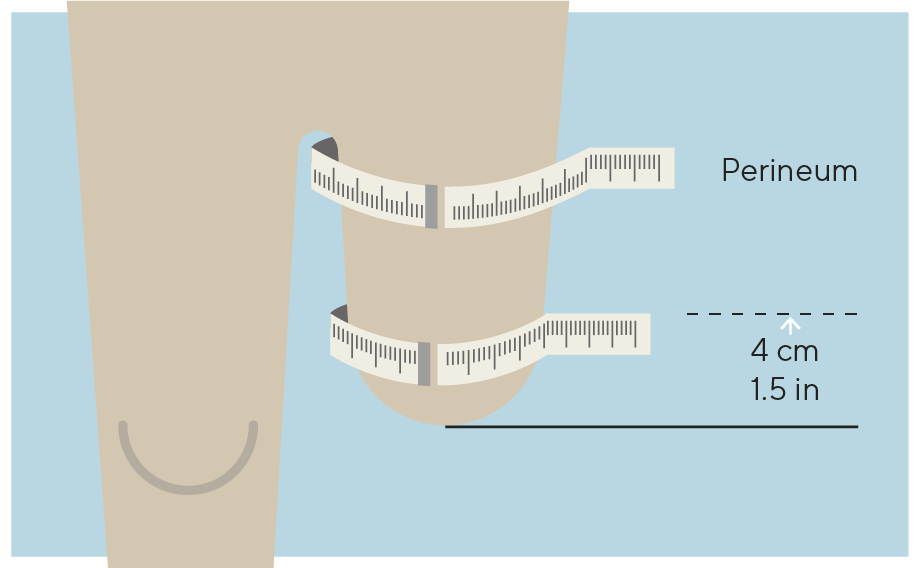

Measure circumference 4cm from the distal end. Let soft tissue ”hang” while measuring.
Short, Medium or Long limb? Compare to sound limb. Divided in 1/3.
Measure circumference 2cm below perineum.

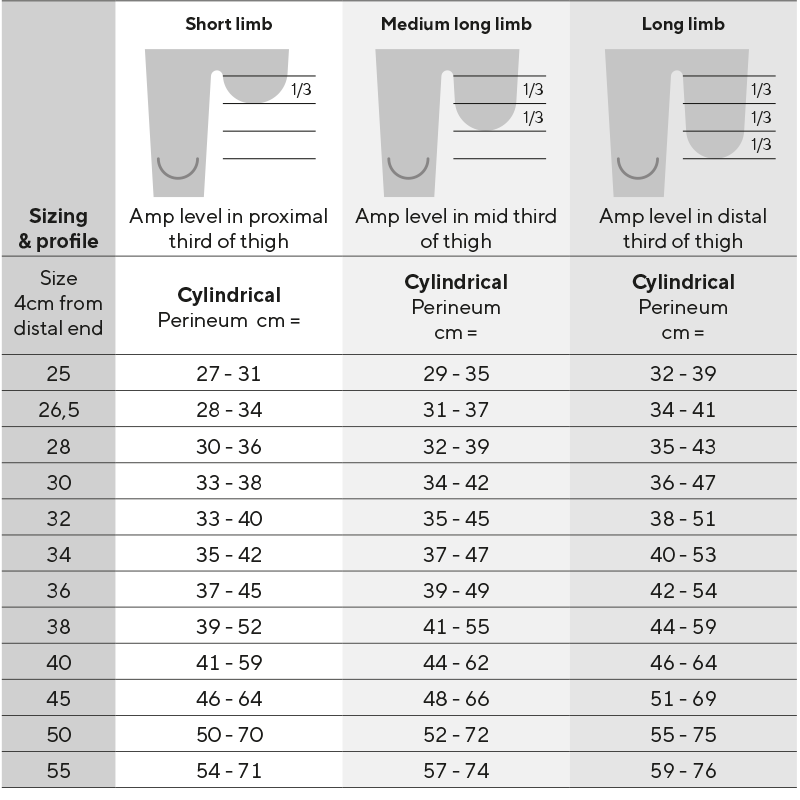

See table below to choose cylindrical or conical.
Make sure minimum limb length requirement per size is met, see table above.
And most importantly, access the fit & feel with the user.
Minimum recommended length of residual limb
| Liner Sizes | Min. Length |
|---|---|
| 25-30 | 125 mm |
| 32-40 | 135 mm |
| 45-50 | 155 mm |
| 55 | 165 mm |

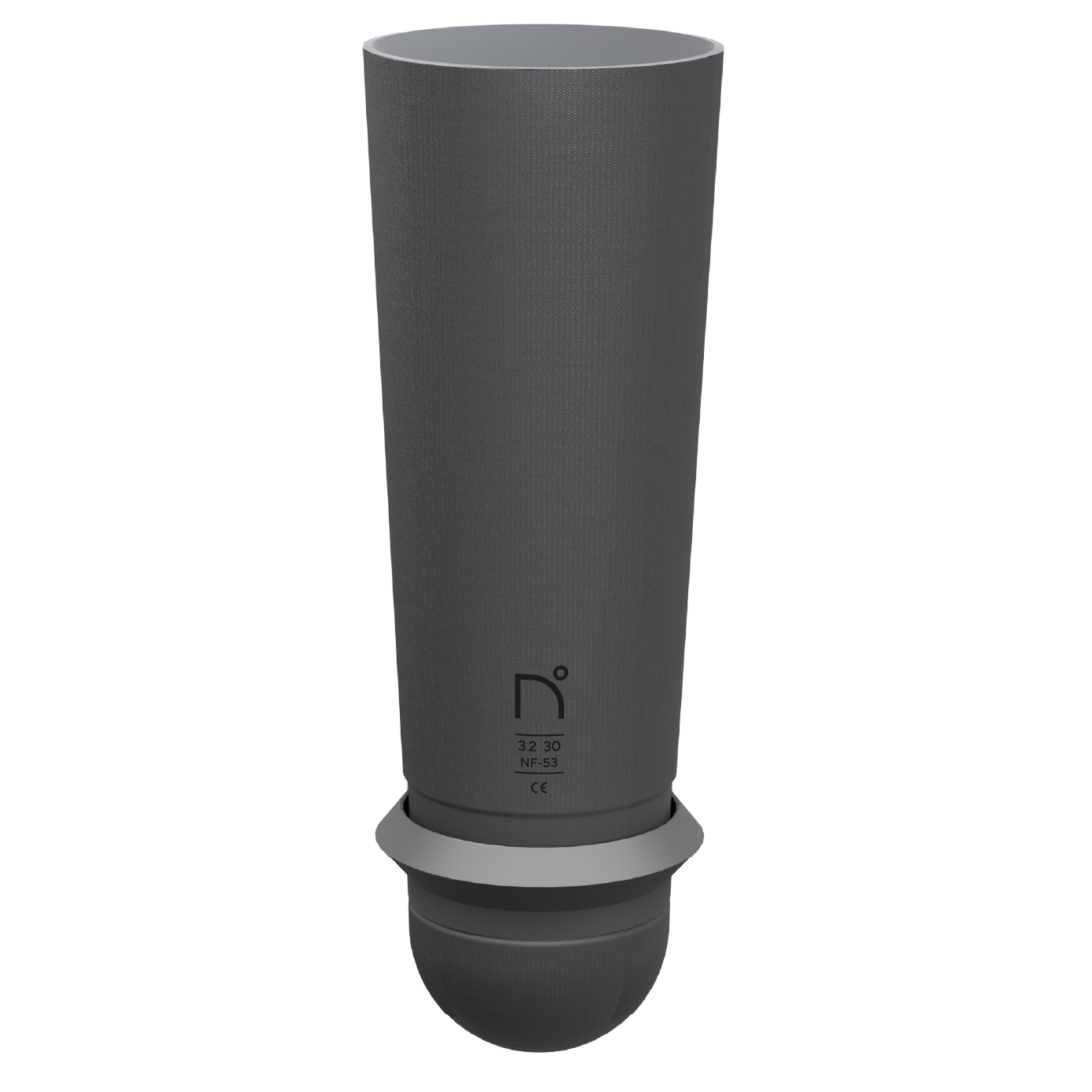

NORD° LINER 3.2
NF-53
TF CONICAL
TF/AK vacuum liner with sealing membrane designed to Conform and Stabilize in a balanced way.
Nord° custom TPE formula conforming without deforming. V-shaped sealing membrane for effective vacuum and rotation control. Easy use of stump socks.
NORD° LINER 3.2 NF-53 CONICAL
| Nord° Formula | NF-53 Custom blend HQ TPE |
| Intended for | All types of activities |
| Length | ≈ 44 cm |
| Color | Dark Grey |
| Weight | Size 32 Cylindrical ≈ 650 gram |
| Products | Produced in Spain |
| Nord° Formula | Produced in Sweden |
| Packaging | 85% recycled paper. Produced in Sweden |
| CO2 emission | LCA in progress |
Size chart
| Size cm | Part no. |
|---|---|
| 25 | 322225 |
| 26.5 | 322226 |
| 28 | 322228 |
| 30 | 322230 |
| 32 | 322232 |
| 34 | 322234 |
| 36 | 322236 |
| 38 | 322238 |
Sizing
Measure circumference 4cm from the distal end. Let soft tissue ”hang” while measuring.
Short, Medium or Long limb? Compare to sound limb. Divided in 1/3.
Measure circumference 2cm below perineum.

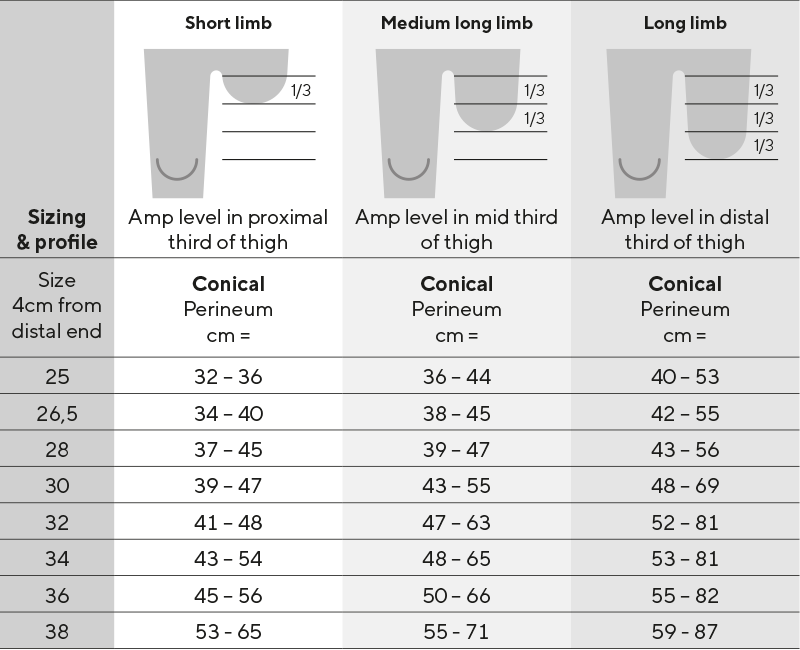

See table below to choose cylindrical or conical.
Make sure minimum limb length requirement per size is met, see table above.
And most importantly, access the fit & feel with the user.
Minimum recommended length of residual limb
| Liner Sizes | Min. Length |
|---|---|
| 25-30 | 125 mm |
| 32-40 | 135 mm |
NORD° LINER 2.1
NF-34
TT CUSHION 3MM
Nord Liner® TT Cushion 2.1 will retrofit one of the most common 3 mm standard TT profiles used on the market.
NORD° LINER 2.1 NF-34
| Nord° Formula | NF-34 Custom blend TPE |
| Intended for | All types of activities |
| Length | ≈ 40 cm |
| Color | Dark Grey |
| Weight | Size 28 ≈ 485 gram |
| Products | Produced in Spain |
| Nord° Formula | Produced in Sweden |
| Textile | +94% recycled polyamide / elastane. Produced in Portugal: Yarn sourcing in EU |
| Packaging | 85% recycled paper. Produced in Sweden |
| CO2 emission | Size 26.5 = 2.43kg CO2 eq LCA conducted following principles of ISO14040/44 |
Sizing
Measure Circumference (in cm) 4 cm from distal end of the residual limb. Choose size as close to measurement as possible. If between two sizes round down to size below.
NORD° LINER 2.1 NF-34
| Size cm | Part no. |
|---|---|
| 16 | 212216 |
| 18 | 212218 |
| 20 | 212220 |
| 22 | 212222 |
| 23.5 | 212223 |
| 25 | 212225 |
| 26.5 | 212226 |
| 28 | 212228 |
| 30 | 212230 |
| 32 | 212232 |
| 34 | 212234 |
| 36 | 212236 |
NORD° LINER 2.2
NF-29
TT CUSHION 6MM UNIFORM
Nord Liner® TT Cushion 2.2 NF 29 will retrofit one of the commonly used TT liner profiles in the market.
NORD° LINER 2.2 NF-29
| Nord° Formula | NF-29 Custom blend TPE |
| Intended for | Everyday activities excluding sports |
| Guide | Roll on guide on the inside to simplify correct placement |
| Length | ≈ 44 cm |
| Color | Dark Grey |
| Weight | Size M ≈ 520 gram |
| Products | Produced in Spain |
| Nord° Formula | Produced in Sweden |
| Textile | +94% recycled polyamide / elastane. Produced in Portugal: Yarn sourcing in EU |
| Packaging | 85% recycled paper. Produced in Sweden |
| CO2 emission | Size M = 2.43kg CO2 eq LCA conducted following principles of ISO14040/44 |
Sizing
Circumference 4 cm & 30 cm from distal end of the residual limb.
Nord° Liner 2.2 NF-29
| Measure @ 4 cm | Measure @ 30 cm | Size | Part no. |
|---|---|---|---|
| 15-22 cm | 20-27 cm | S | 221201 |
| 18-26 cm | 23-36 cm | M | 221202 |
| 20-28 cm | 33-50 cm | M+ | 221203 |
| 25-33 cm | 36-55 cm | L | 221204 |
| 28-40 cm | 40-60 cm | L+ | 221205 |
| 34-45 cm | 43-65 cm | XL | 221206 |
NORD° LINER 2.2
NF-34
TT CUSHION 6MM UNIFORM
Nord Liner® TT Cushion 2.2 NF-34 will retrofit one of the commonly used TT liner profiles in the market.
Slightly firmer feel.
NORD° LINER 2.2 NF-34
| Nord° Formula | NF-34 Custom blend TPE |
| Intended for | All activities. Users preffering a slightly firmer feel |
| Guide | Roll on guide on the inside to simplify correct placement |
| Length | ≈ 44 cm |
| Color | Dark Grey |
| Weight | Size M ≈ 520 gram |
| Products | Produced in Spain |
| Nord° Formula | Produced in Sweden |
| Textile | +94% recycled polyamide / elastane. Produced in Portugal: Yarn sourcing in EU |
| Packaging | 85% recycled paper. Produced in Sweden |
| CO2 emission | Size M = 2.43kg CO2 eq. LCA conducted following principles of ISO14040/44 |
Sizing
Circumference 4 cm & 30 cm from distal end of the residual limb.
Nord° Liner 2.2 NF-34
| Measure @ 4 cm | Measure @ 30 cm | Size | Part no. |
|---|---|---|---|
| 15-22 cm | 20-27 cm | S | 222201 |
| 18-26 cm | 23-36 cm | M | 222202 |
| 20-28 cm | 33-50 cm | M+ | 222203 |
| 25-33 cm | 36-55 cm | L | 222204 |
| 28-40 cm | 40-60 cm | L+ | 222205 |
| 33-45 cm | 43-65 cm | XL | 222206 |
NORD° SLEEVE 1.1
NF-29
Our durable custom made TPE & Textile is designed to provide prosthetic users with a comfortable knee flexion, a good air tight seal and a safe ”effortless” range of motion. Don´t hesitate to put us to the test.
NORD° SLEEVE 1.1 NF-29
| Nord° Formula | NF-29 Custom blend TPE |
| Intended for | Everyday activities excluding sports |
| Length | ≈ 44 cm |
| Profile | Slightly conical shape. 1cm difference from proximal to distal end. Thickness: 4mm |
| Color | Dark Grey |
| Weight | Size 3 ≈ 405 gram |
| Products | Produced in Spain |
| Nord° Formula | Produced in Sweden |
| Textile | +94% recycled polyamide / elastane. Produced in Portugal: Yarn sourcing in EU |
| Packaging | 85% recycled paper. Produced in Sweden |
| CO2 emission | Size 3 = 2.11kg CO2 eq. LCA conducted following principles of ISO14040/44 |
Sizing
Circumference 15 cm above mid patella.
Nord° Sleeve 1.1 NF-29
| Measure @ 15 cm | Size | Part no. |
|---|---|---|
| 28-34 cm | 1 | 111201 |
| 32-39 cm | 2 | 111202 |
| 38-46 cm | 3 | 111203 |
| 44-52 cm | 4 | 111204 |
| 50-58 cm | 5 | 111205 |
NORD° SLEEVE 1.2
NF-34
Our durable custom made TPE & Textile is designed to provide prosthetic users with comfortable knee flexion, a good air tight seal and a safe ”effortless” range of motion. Don´t hesitate to put us to the test.
NORD° SLEEVE 1.2 NF-34
| Nord° Formula | NF-34 Custom blend TPE |
| Intended for | All types of activities |
| Length | ≈ 37 cm |
| Profile | Conical shape. Ca. 2.5 cm difference from proximal to distal end. Thickness: Going from 4 mm proximally to 2.5 mm distally. |
| Color | Dark Grey |
| Weight | Size 3 ≈ 380 gram |
| Products | Produced in Spain |
| Nord° Formula | Produced in Sweden |
| Textile | +94% recycled polyamide / elastane. Produced in Portugal: Yarn sourcing in EU |
| Packaging | 85% recycled paper. Produced in Sweden |
| CO2 emission | Size 3 = 2.11kg CO2 eq. LCA conducted following principles of ISO14040/44 |
Sizing
Circumference 15 cm above mid patella.
Nord° Sleeve 1.2 NF-34
| Measure @ 15 cm | Size | Part no. |
|---|---|---|
| 28-34 cm | 1 | 122201 |
| 32-39 cm | 2 | 122202 |
| 38-46 cm | 3 | 122203 |
| 44-52 cm | 4 | 122204 |
| 50-58 cm | 5 | 122205 |
